Spares

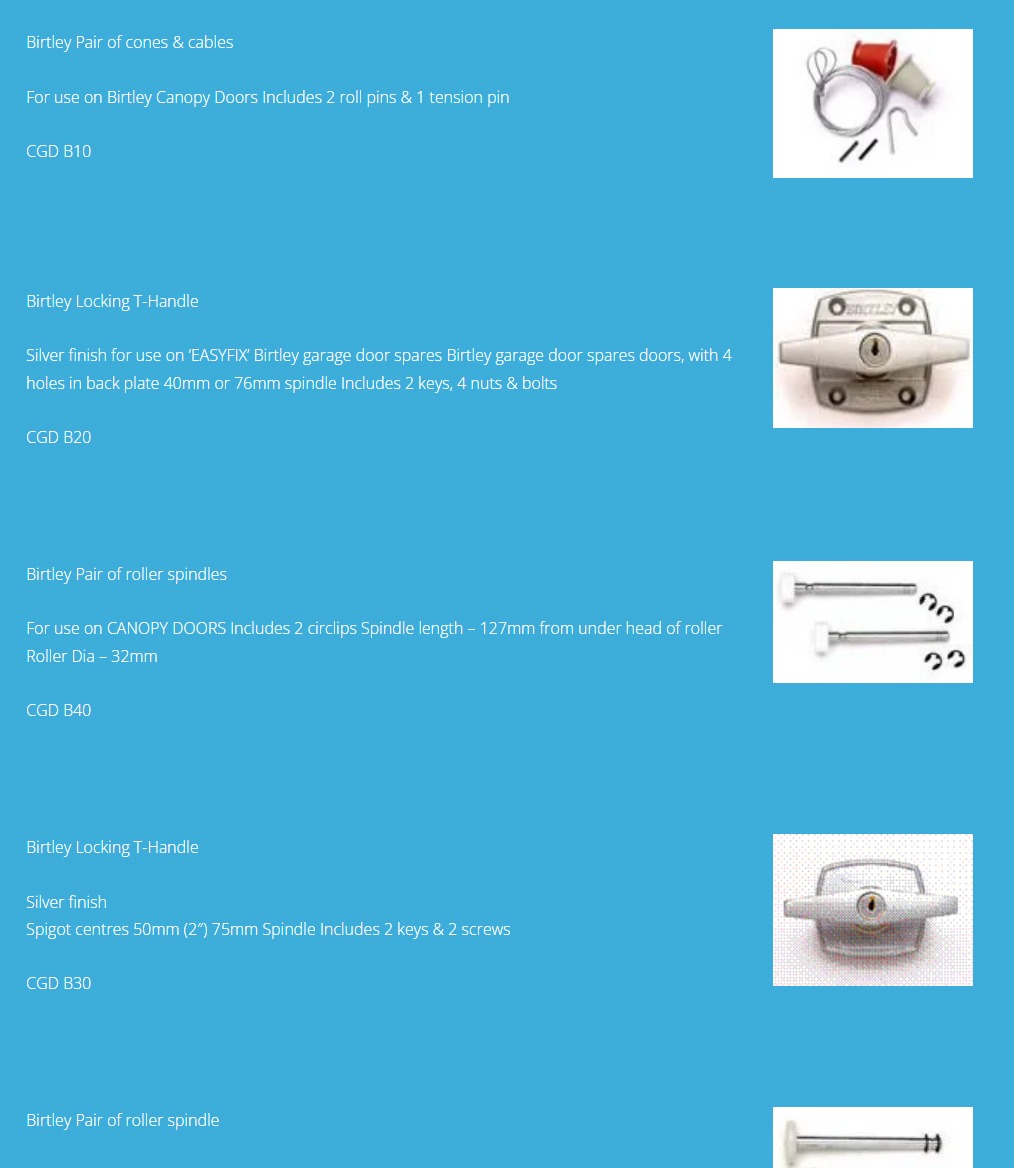

Birtley Pair of cones & cables

For use on Birtley Canopy Doors Includes 2 roll pins & 1 tension pin

CGD B10

Birtley Locking T-Handle

silver finish for use on ‘EASYFIX’ birtley garage door sparesbirtley garage door spares doors, With 4 holes in back plate 40mm or 76mm spindle Includes 2 keys, 4 nuts & bolts

CGD B20

Birtley Pair of roller spindles

For use on CANOPY DOORS Includes 2 circlips Spindle length – 127mm from under head of roller Roller Dia – 32mm

CGD B40

Birtley Locking T-Handle

silver finish Spigot centres 50mm (2″) 75mm Spindle Includes 2 keys & 2 screws

CGD B30

Birtley Pair of roller spindle

Pair of roller spindles for use on RETRACTABLE DOORS length – 157mm from under head of roller Roller Dia – 46mm

CGD B70

Henderson Pair of cones & cables

For use on all PRE PREMIER CANOPY DOORS Includes 2 roll pins & 1 tension pin

CGD H10

Henderson Pair of cables

For use on PREMIER CANOPY DOORS Includes tension pin

CGD H11

Henderson Pair of cones & cables

for use on PREMIER CANOPY DOORS Includes 2 roll pins & 1 tension pin

CGD H12

Henderson Locking T-Handle

silver finish Spindle length – 31mm Short screw spigots Includes 2 keys & 2 screws

CGD H 15

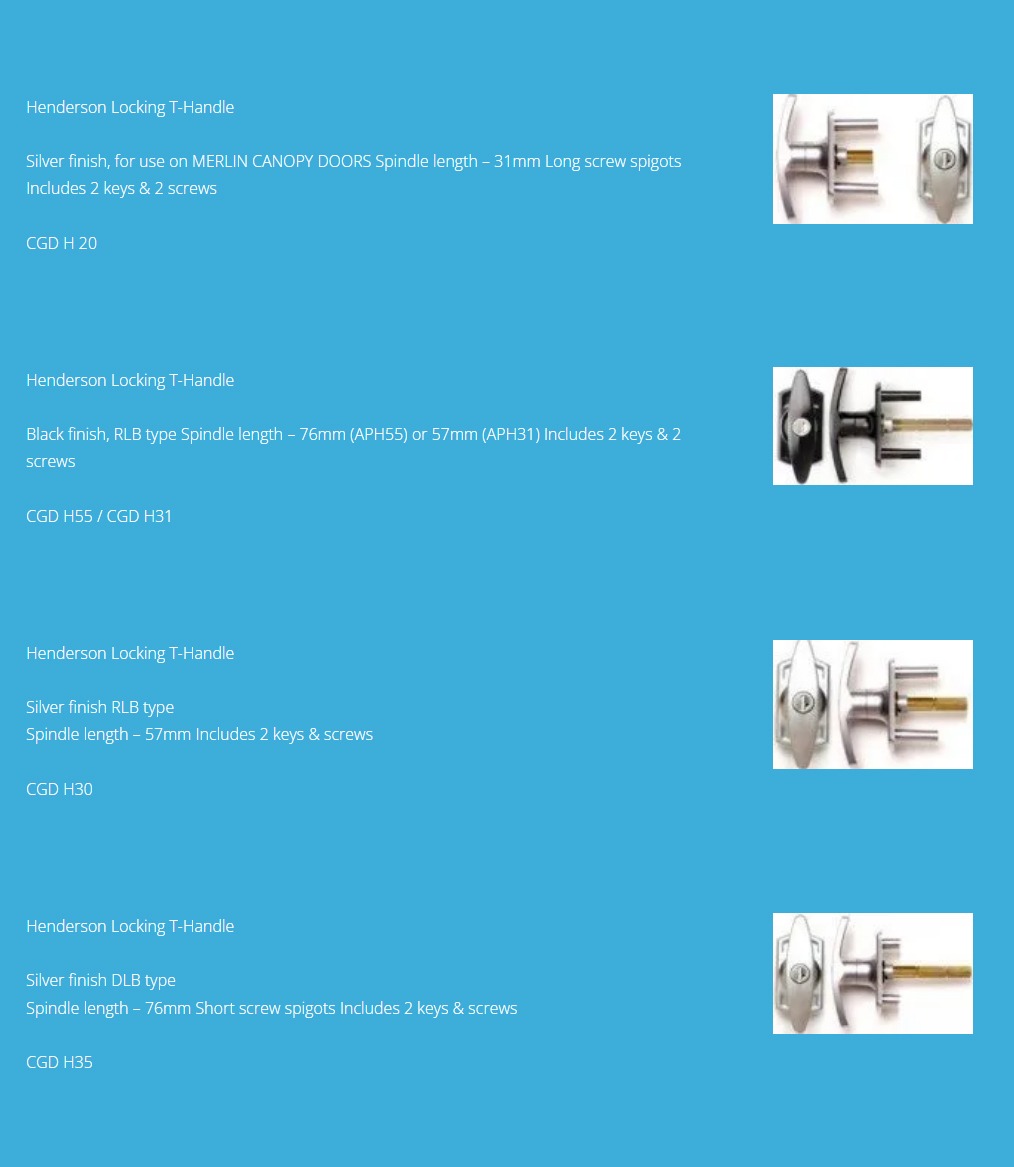

Henderson Locking T-Handle

silver finish, for use on MERLIN CANOPY DOORSSpindle length – 31mm Long screw spigots Includes 2 keys & 2 screws

CGD H 20

Henderson Locking T-Handle

black finish, RLB type Spindle length – 76mm (APH55) or 57mm (APH31) Includes 2 keys & 2 screws

CGD H55 / CGD H31

Henderson Locking T-Handle

silver finish RLB type Spindle length – 57mm Includes 2 keys & screws

CGD H30

Henderson Locking T-Handle

silver finish DLB typeSpindle length – 76mmShort screw spigots Includes 2 keys & screws

CGD H35

Henderson Locking T-Handle

silver finish DLB type Spindle length – 76mm Includes 2 keys & screws

CGD H50

Henderson S/L type inner swivel

Can be used on most Henderson locks

CGD H250

Henderson Spring support bracket

CANOPY DOOR – Useful for other makes of door

CGD H90

Henderson Jamb Channel

CANOPY DOOR gear Useful for other makes of door

CGD H180

Henderson Retensioning Kit

CANOPY DOOR Includes 2 toggles, allen key & tension pin

CGD H100

Henderson Pair of roller spindles

for PRE PREMIERE CANOPY DOORS Includes 4 circlipsSpindle length – 114mm from under head of roller Roller Dia – 22mm

CGD H40

Henderson Pair of roller spindles

for PREMIERE CANOPY DOORS Includes 4 circlips Spindle length – 72mm from under head of roller Roller Dia – 32mm

CGD H41

Henderson Pair of roller spindles

for PRE PREMIERE RETRACTABLE DOORS Includes 2 cirlips Spindle lengh – 85mm from under head of roller Roller Dia – 46mm

CGD H70

Henderson Pair of roller spindles

for EARLIER CANOPY DOORS Includes 2 nuts & washers Spindle length – 115mm from under head of roller Roller Dia – 22mm

CGD H60

Henderson Pair of roller brackets

for PRE PREMIER RETRACTABLE DOORS Uses APH70 spindles Handed, only available in pairs

CGD H71

Henderson Pair of roller spindles

for DOUBLE MERLIN CANOPY DOORS Includes nuts & washers Spindle length – 116mm Roller Dia – 22mm

CGD H80

Henderson Dolphin replacement spring

Replacement spring (APZ140 Adjuster bolt)
Yellow (H110) / Grey (H120) / Green (H130)

CGD H110 / H120 / H130 /

Henderson Ultra 150 Mk1

SPRING: Length over the coils 521mm (20 1/2″) approx no. of coils 82 (H140)
ADJUSTING BOLT (H141)

CGD H140 / 141

Henderson Ultra 150 Mk2 Spring

SPRING: Length over the coils 424mm (16.69″) approx no. of coils 63 (H150)
ADJUSTING BOLT (151)

CGD H150 / 151

Henderson Ultra 210 spring

SPRING: Length over the coils – 603mm ( 23 3/4″) approx No. of coils – 86 approx (210)
ADJUSTING BOLT (211)

CGD H210/ 211

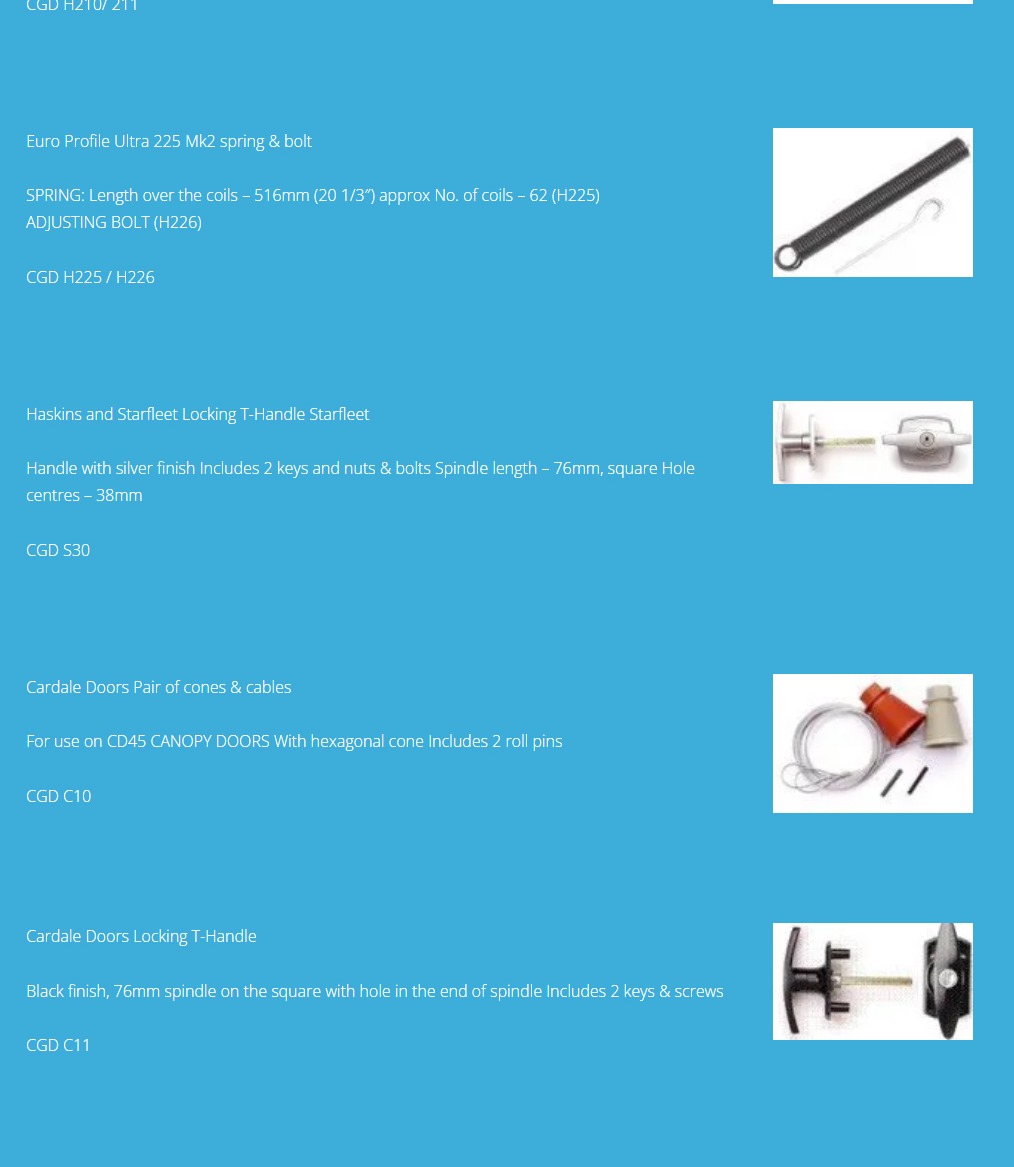

Euro Profile Ultra 225 Mk2 spring & bolt

SPRING: Length over the coils – 516mm (20 1/3″) approx No. of coils – 62 (H225)
ADJUSTING BOLT (H226)

CGD H225 / H226

Haskins and Starfleet Locking T-Handle Starfleet

Handle with silver finish Includes 2 keys and nuts & bolts Spindle length – 76mm, square Hole centres – 38mm

CGD S30

Cardale Doors Pair of cones & cables

For use on CD45 CANOPY DOORS With hexagonal cone Includes 2 roll pins

CGD C10

Cardale Doors Locking T-Handle

black finish, 76mm spindle on the square with hole in the end of spindle Includes 2 keys & screws

CGD C11

Cardale Doors Pair of cables

For use on Mk3 CANOPY DOORS with centre spring drum

CGD C20

Cardale Doors Pair of cones & cables

For use on COMPACT CANOPY DOORS with torsion spring across the centre of door Includes 2 roll pins & 2 star washers

CGD C30

Henderson Pair of cones & cables

for use on earlier CANOPY DOORS Includes 2 roll pins

CGD C40

Cardale Doors Pair of cables

for use on CD PROFESSIONAL DOORS

CGD C50

Cardale Doors Pair of roller spindles

for use on earlier CANOPY DOORS Includes nut & washer Short Spindle length – 67mm from under head of roller Roller Dia – 22mm

CGD C70

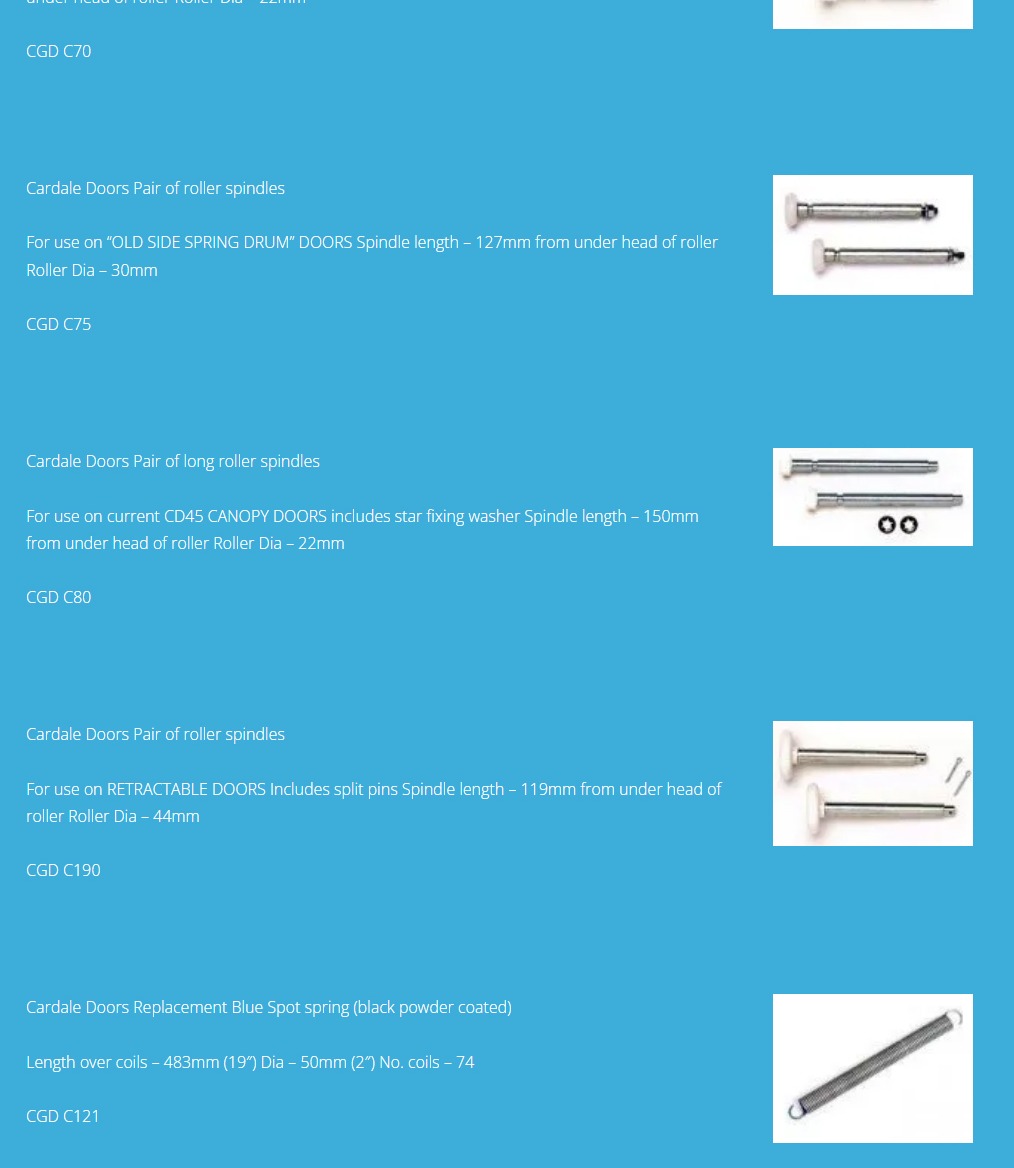

Cardale Doors Pair of roller spindles

for use on “OLD SIDE SPRING DRUM” DOORS Spindle length – 127mm from under head of roller Roller Dia – 30mm

CGD C75

Cardale Doors Pair of long roller

spindles for use on current CD45 CANOPY DOORS includes star fixing washer Spindle length – 150mm from under head of roller Roller Dia – 22mm

CGD C80

Cardale Doors Pair of roller spindles

for use on RETRACTABLE DOORS Includes split pins Spindle length – 119mm from under head of roller Roller Dia – 44mm

CGD C190

Cardale Doors Replacement Blue Spot spring (black powder coated)

Length over coils – 483mm (19″) Dia – 50mm (2″) No. coils – 74

CGD C121

Euro Profile Canopy spring assembly 7’0″

All Canopy springs for Henderson doors are also available as a complete Canopy Gear Pack (see gear section)

CGD H300

Euro Profile Canopy spring assembly 7’6″

All Canopy springs for Henderson doors are also available as a complete Canopy Gear Pack (see gear section)

CGD H310

Euro Profile Canopy spring assembly 8’0″

All Canopy springs for Henderson doors are also available as a complete Canopy Gear Pack (see gear section)

CGD H320

Euro Profile Canopy spring assembly 8’6″

All Canopy springs for Henderson doors are also available as a complete Canopy Gear Pack (see gear section)

CGD H330

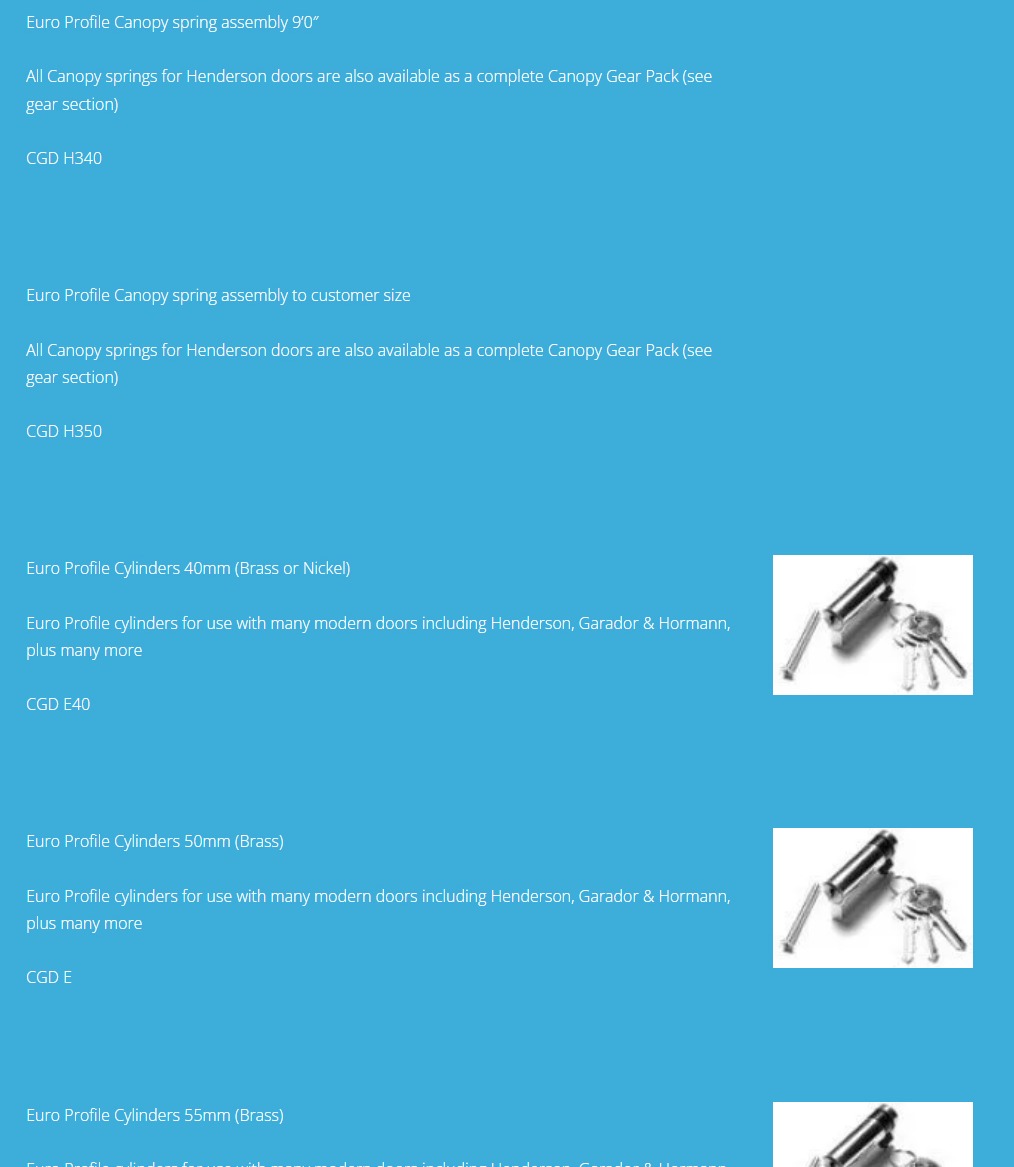

Euro Profile Canopy spring assembly 9’0″

All Canopy springs for Henderson doors are also available as a complete Canopy Gear Pack (see gear section)

CGD H340

Euro Profile Canopy spring assembly to customer size

All Canopy springs for Henderson doors are also available as a complete Canopy Gear Pack (see gear section)

CGD H350

Euro Profile Cylinders 40mm (Brass or Nickel)

Euro Profile cylinders for use with many modern doors including Henderson, Garador & Hormann, plus many more

CGD E40

Euro Profile Cylinders 50mm (Brass)

Euro Profile cylinders for use with many modern doors including Henderson, Garador & Hormann, plus many more

CGD E

Euro Profile Cylinders 55mm (Brass)

Euro Profile cylinders for use with many modern doors including Henderson, Garador & Hormann, plus many more

CGD E55

Euro Profile Cylinders 70mm (Silver)

Euro Profile cylinders for use with many modern doors including Henderson, Garador & Hormann, plus many more

CGD E70

Wessex Ellard Pair of roller spindles

for use on WESSEX CANOPY DOORS Includes cable bush Spindle length – 112mm Roller Dia – 46mm

CGD W40

Cylinders 45mm (Nickel)

Euro Profile cylinders for use with many modern doors including Henderson, Garador & Hormann, plus many more

CGD E45

Cardale Doors Locking T-Handle

black finish, 76mm spindle on the square with hole in the end of spindle Includes 2 keys & screws

CGD C11

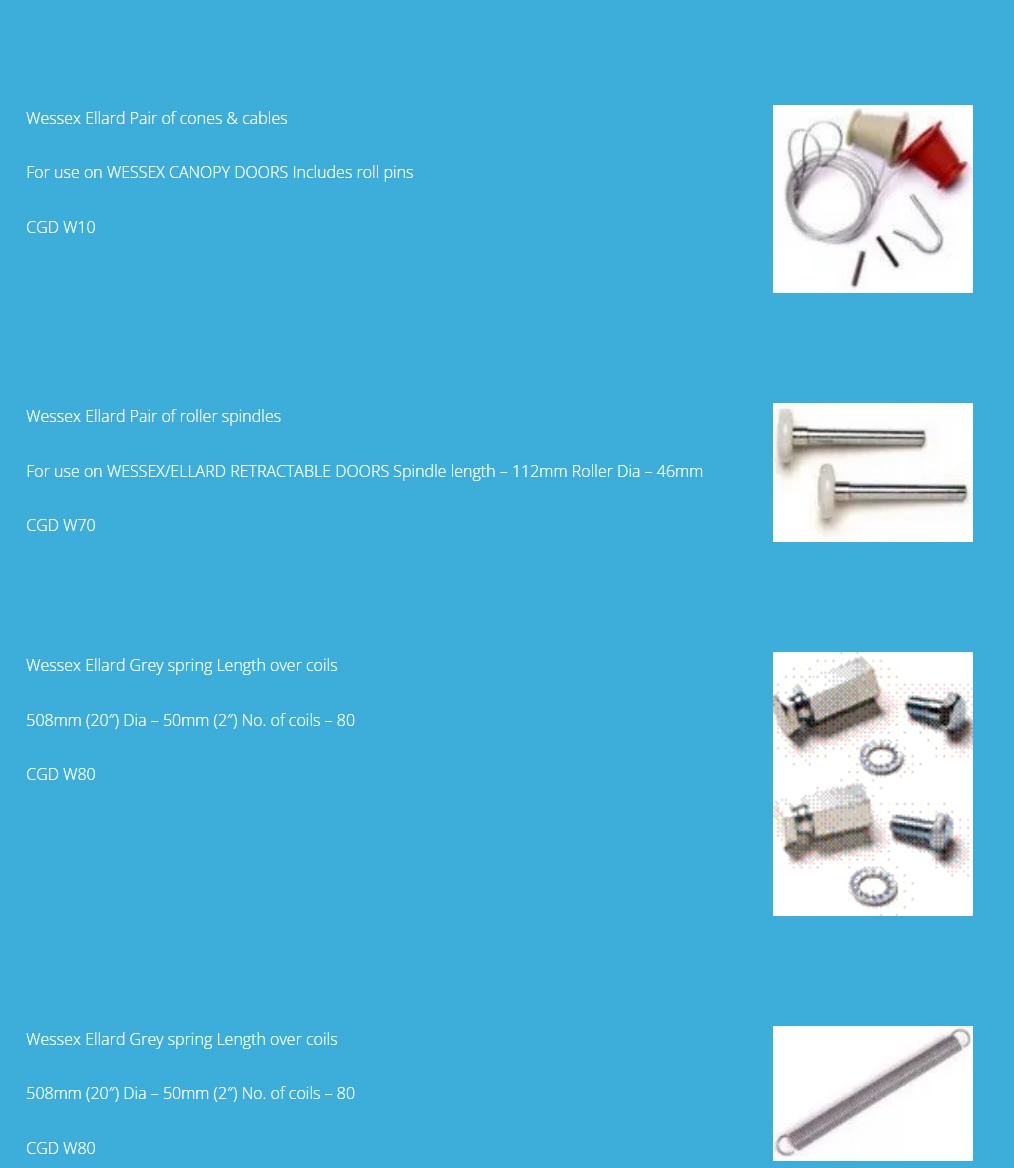

Wessex Ellard Pair of cones & cables

for use on WESSEX CANOPY DOORS Includes roll pins

CGD W10

Wessex Ellard Delete – Pair of cones & cables

for use on WESSEX CANOPY DOORS Includes roll pins

CGD W10

Wessex Ellard Pair of roller spindles

for use on WESSEX/ELLARD RETRACTABLE DOORS Spindle length – 112mm Roller Dia – 46mm

CGD W70

Wessex Ellard Arm spring pin

for use on WESSEX/ELLARD RETRACTABLE DOORS Length – 48mm (W75) – 60mm (W75L)

CGD W75 / W75L

Wessex Ellard Grey spring Length over coils

508mm (20″) Dia – 50mm (2″) No. of coils – 80

CGD W80

Wessex Ellard Black spring

Length over the coils 496mm (19 1/2″) Dia – 45mm (1 3/4″) No. of coils – 91

CGD W90

Wessex Ellard Yellow spring

Length over the coils – 470mm (18 1/2″) Dia – 67mm (2.5/8″) No. of coils – 53 Can replace Wessex Green spring using longer adjuster bolt

CGD W100

Wessex Ellard Blue spring

Length over the coils – 510mm (20″) Dia – 50mm (2″) No. of coils – 67 Can Replace Wessex Red spring

CGD W110

KING DOORS Pair of cones & cables

for use on CANOPY DOORS Includes roll pins & crook pins

CGD K10

KING DOORS Pair of roller spindles

for use on CANOPY DOORS Includes 2 circlips Spindle Length – 125mm Roller Dia – 22mm

CGD K40

KING DOORS Locking T-Handle

black finish for use on most KING DOORS Includes 2 keys & 2 screws Uses APH 55 Henderson black T – Handle

CGD K50

Garador Cables for Mk3

S/S & C type doors 7’0″ wide doors (pr) 75″

CGD G10

Garador Cables for Mk3

6’6″ wide doors (pr) 72″CGD G

CGD G11

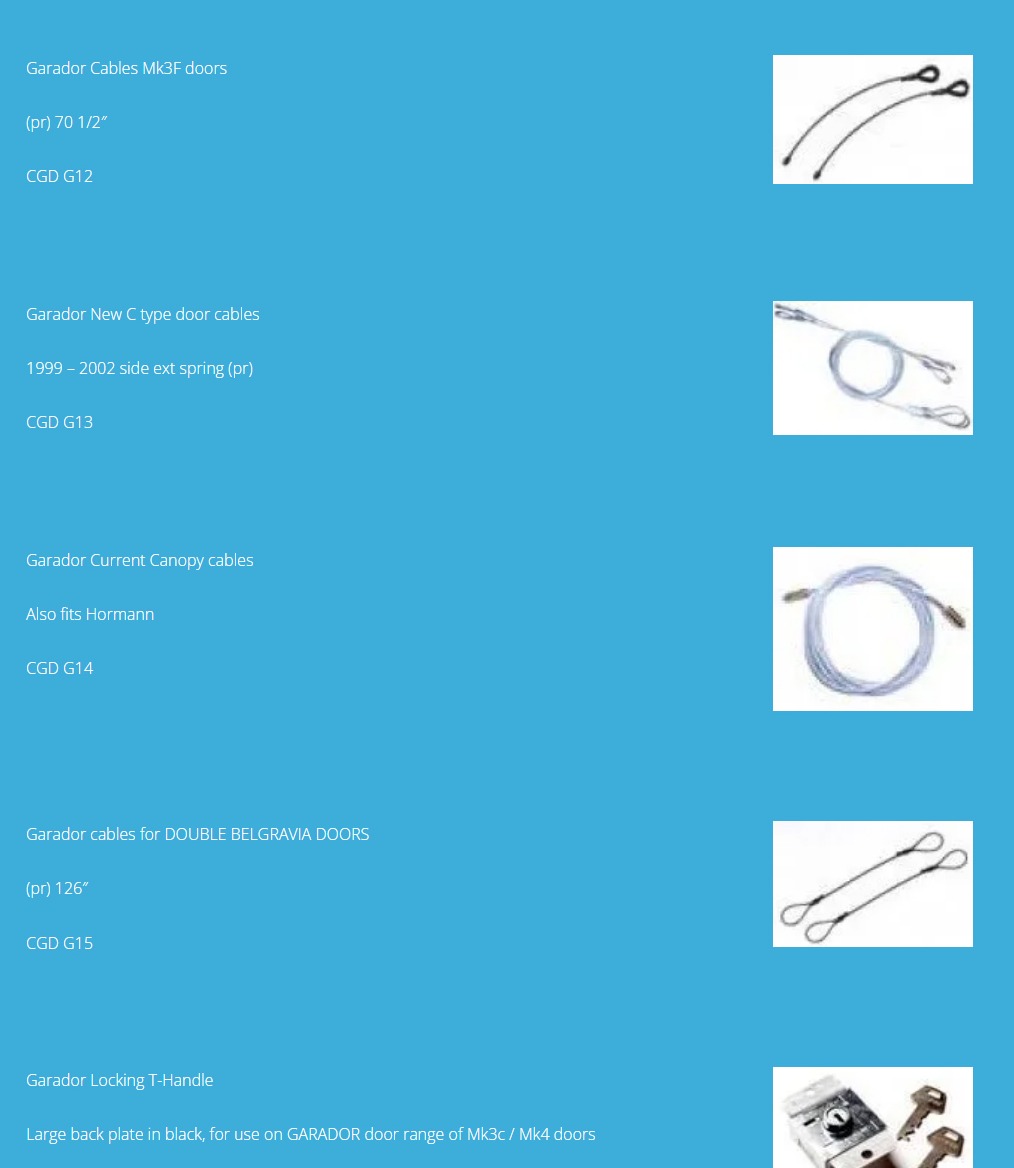

Garador Cables Mk3F doors

(pr) 70 1/2″

CGD G12

Garador New C type door cables

1999 – 2002 side ext spring (pr)

CGD G13

Garador Current Canopy cables

also fits Hormann

CGD G14

Garador cables for DOUBLE BELGRAVIA DOORS

(pr) 126″

CGD G15

Garador 7 Lever dead bolt ” ZA ” cabinet lock

for all use onWESTLAND, CATNIC & GARADOR lever handle doors Includes 2 keys

CGD G20

Garador Locking T-Handle

large back plate in black, for use on GARADOR door range of Mk3c / Mk4 doors

CGD G30

Garador Locking T- Handle

with large back plate in black, for use on GARADOR door range of Mk3c / Mk4 doors. With all parts to convert lever handle to T – Handle. Includes 2 keys, 4 bolts, 4 spacers, 4 washers, spindle ‘star’ captive washer, crank, 2 mounting plates & wire retainer.

CGD G50

Garador Rear lock single crank (cam)

CGD G30

Henderson Plastic Handl 64mm Spindle

APH91

Henderson Plastic Handle 69.5mm Spindle

APH92

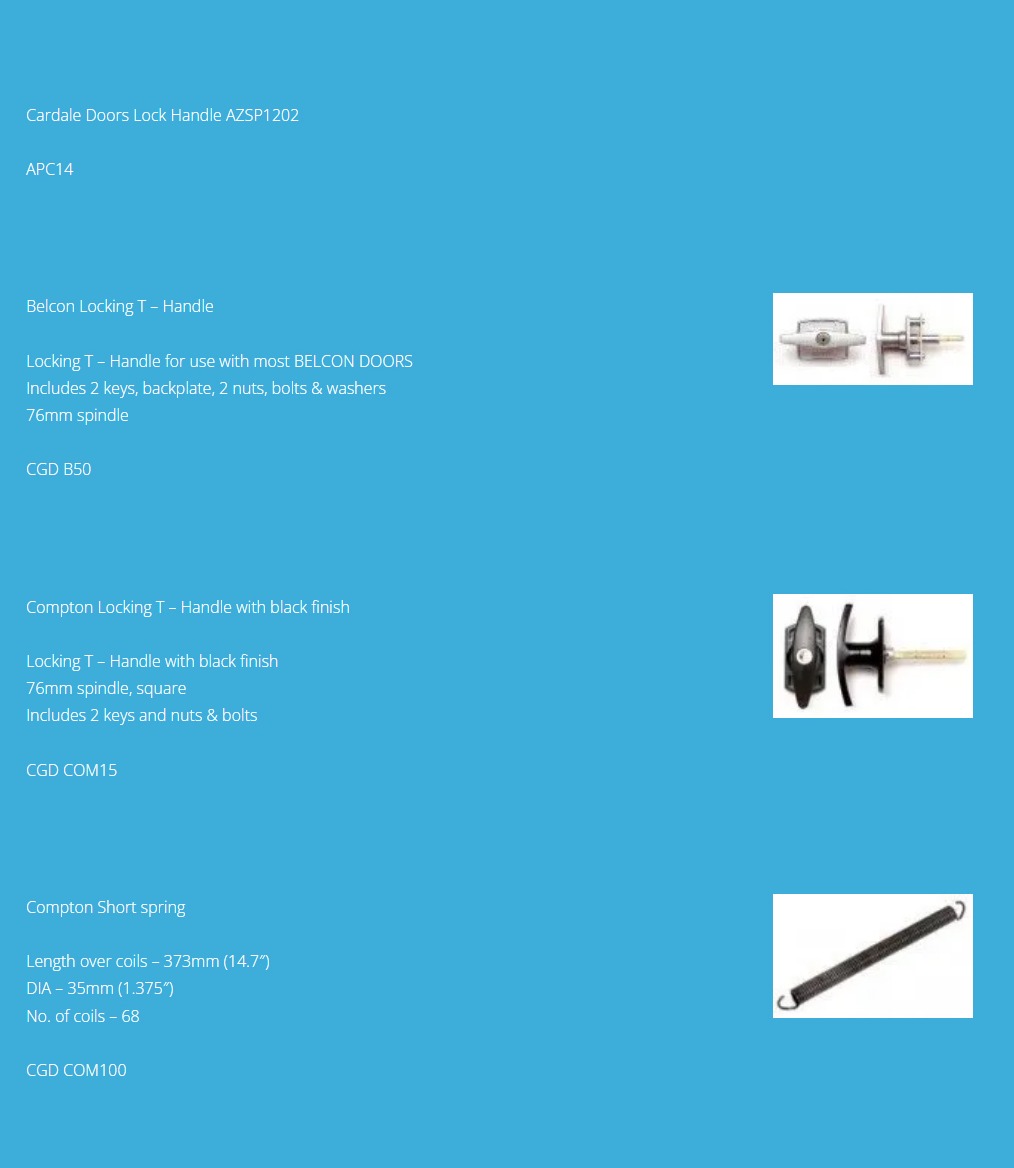

Cardale Doors Lock Handle AZSP1202

APC14

Belcon Locking T – Handle

Locking T – Handle for use with most BELCON DOORS
Includes 2 keys, backplate, 2 nuts, bolts & washers
76mm spindle

CGD B50

Compton Locking T – Handle with black finish

Locking T – Handle with black finish
76mm spindle, square
Includes 2 keys and nuts & bolts

CGD COM15

Compton Short spring

Length over coils – 373mm (14.7″)
DIA – 35mm (1.375″)
No. of coils – 68

CGD COM100

Compton Long spring

Length over the coils – 507mm (20″)
DIA – 50mm (2″)
No. of coils – 75

CGD COM120

Apex Pair of cables

Pair of cables for APEX DOORS
53″ long including large loop at one end

CGD A10

Apex Locking T – Handle with silver finish

Locking T – Handle with silver finish
Spindle length – 76mm
Includes 2 keys, backplate and 2 nuts, bolt & washers

CGD A20

Marley Locking – T Handle with silver finish

Spindle Length – 85mm, square
Includes 2 keys and all screws & spacers
70mm Hole centres

CGD M10

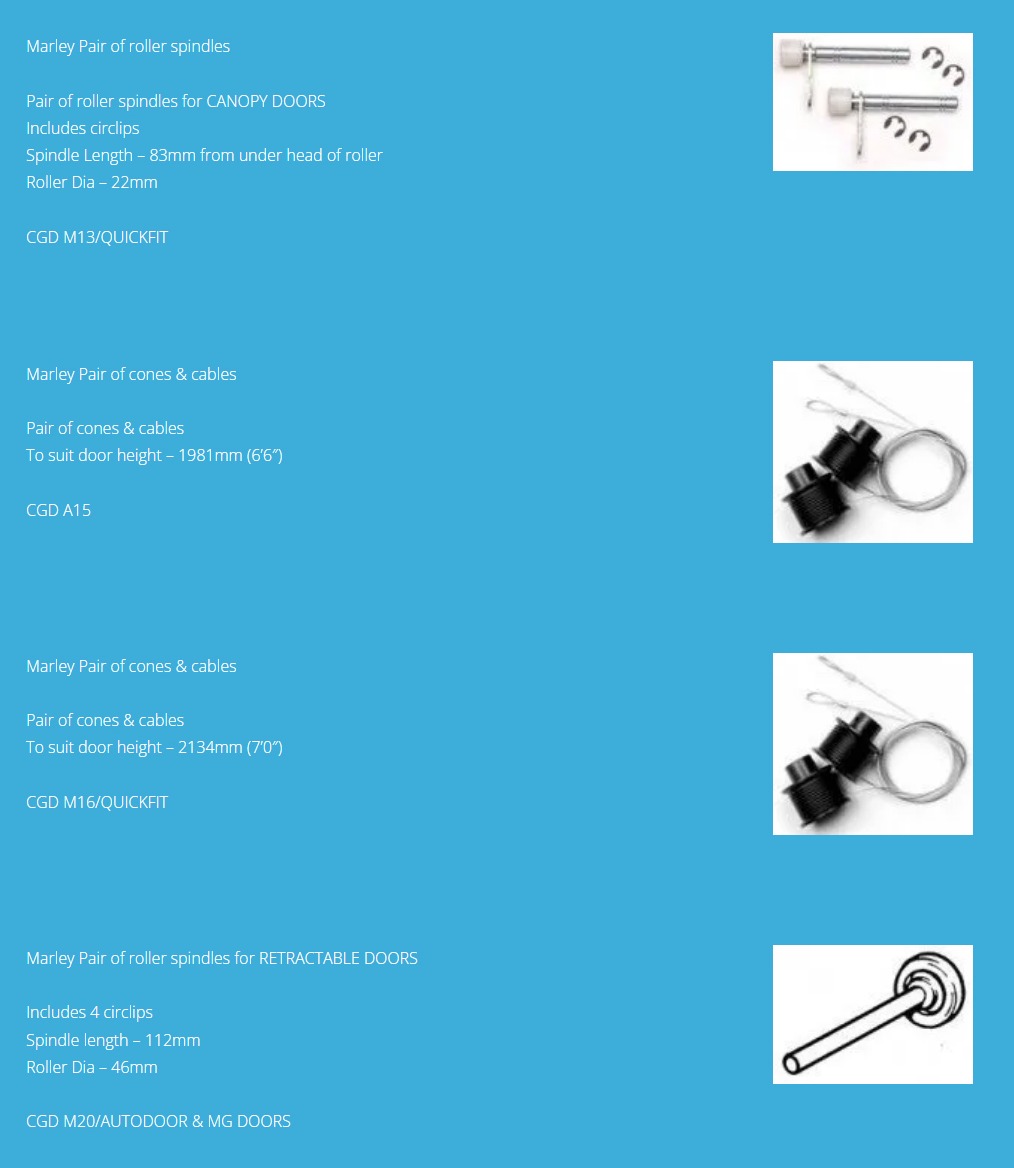

Marley Pair of roller spindles

Pair of roller spindles for CANOPY DOORS
Includes circlips
Spindle Length – 83mm from under head of roller
Roller Dia – 22mm

CGD M13/QUICKFIT

Marley Pair of cones & cables

Pair of cones & cables
To suit door height – 1981mm (6’6″)

CGD A15

Marley Pair of cones & cables

Pair of cones & cables
To suit door height – 2134mm (7’0″)

CGD M16/QUICKFIT

Marley Pair of roller spindles for RETRACTABLE DOORS

Includes 4 circlips
Spindle length – 112mm
Roller Dia – 46mm

CGD M20/AUTODOOR & MG DOORS
